Large load 90 degree turning electric rail turnplate

Large load 90 degree turning electric rail turnplate

  • Tel.: +86-373-3020456
  • Mobile:+86-13849364134
  • Fax: +86-373-3020456
  • E-mail:Alex@perfte.com
Leave Messages

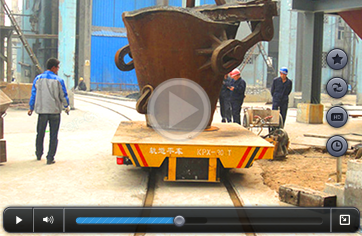

The transfer car is traveling on rails, which is installed in the ground. It is feed power to the gear motor thru cable, then the car is moving forward or backward accordingly.

>> Product presentation


Railway turntable
electric rail turnplate

Aluminium Rail Turnplate
Carry Heavy Steel Turnplate Rail Trailer


Railway turntable

>> Features:

◆ Mold transfer/ Die handling
◆ Electric powered
◆ Single flanged wheel
◆ With PLC programming
◆ AC motor drive




>> Characters


◆ For the electrical parts, especially gearmotor, ABB, SEW, Siemens or other brands are available;
◆ As to the safety equipment, buffer, light alarm, E-STOP, limit switch etc, can be installed;
◆ The cart is designed to cater to severe conditions, including high temperature, flammable and explosive environment.

The transfer car is used to transfer material such as mold from one location to another within factory. The carrying ability is up to 300MT. It is also suitable for coal and mine, steel plant, shipbuilding, or at dock, etc.

Model

BZP-2t

BZP-16t

BZP-25t

BZP-40t

BZP-63t

Rated load(t)

2

16

25

40

63

Diameter(mm)

1200

2000

2500

2800

3000

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

Rotating speed

0.8rmp

0.8rmp

0.8rmp

0.8rmp

0.8rmp

Motor Power(Kw)

0.8

2.2

3

5.5

7.5

Reference Weight(t)

2.3

5

6

7.2

10.3

Recommended Rail Model

P15

P24

P38

P43

P50

As to the surface, flat decking, V-shaped coil holder, U-shaped decking is available; Conditions: running on straight rails, ‘S’ or curved track, and cement floor; Power source: cable reel, battery, dragging cable, festoon cable, low-voltage rails, shrouded bus bar etc.
