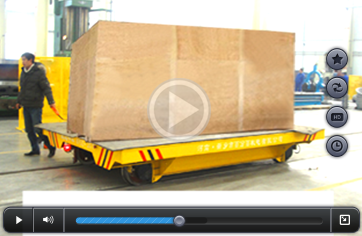

The trolley can be operated either by push button pendant or remote control. It is feed electricity via cable, which supplies power to drive control and start, stop the trolley accordingly.

>> Product presentation


Towed Cable Powered Rail Transporter
rail transfer trolley
Motorized Railway Towed Transfer Trolley


>> Features:

◆ For boiler factory use
◆ Rail bound
◆ Inter bay transport
◆ Towed cable powered
◆ Box beam structure, loading equilibrium




>> Characters


◆ Standard speed is 20 m/min, frequency inverter is available
◆ Cable protection: cable with chain or festoon cable
◆ Trolley dimension can be designed as per your need
◆ Safety facilities: automatic stop when detecting obstacles, limit switch, light alarm, bumper, etc.
The transfer trolley is applied in boiler factory, it is used to transfer heavy machine or equipment, for example, boiler or furnace from one location to another in factory. Additional request, such as high temperature working environment, also can be satisfied.

Model

KPJ-2t

KPJ-63t

KPJ-100t

KPJ-150t

Rated load(t)

2

63

100

150

Wheel base(mm)

1200

4300

4900

7000

Rail Inner Gauge (mm)

1200

1435

2000

2000

Wheel Diameter(mm)

Ф270

Ф600

Ф600

Ф600

Ground Clearance (mm)

50

75

75

75

Motor Power(Kw)

0.8

7.5

11

15

Max Wheel Load(KN)

14.4

221.4

343.8

265.2

Reference Weight(t)

2.5

10.5

14.1

26.2

Recommended Rail Model

P15

P50

QU100

QU100

◆ Usually, our trolley is traveling on track, we can also design trolley running on concrete floor.
◆ Our cart can be electric powered, machine towing or manual operate.
◆ You can choose storage battery operated, cable reeling drum power or shroud bus bar.
