Rail flat trolley applied in paper industry gets the power from cable winded on the cable drum. Cable drum can automatically wind and release cable with the trolley movement. It uses the AC motor to drive reducer and makes wheels move forward and backward.

>> Product presentation

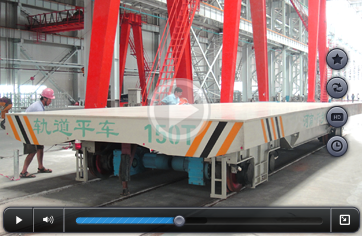

Rail Flat Trolley
Flat Top Trolley no Rails
Electric Rail Flat Cart


>> Features:

◆ Frequently work
◆ Heavy type load
◆ Rail mounted
◆ Explosion proof and anti high temperature

>> Characters


◆ Box girder structure cart frame to ensure table even load
◆ Design safety support
◆ Variable speed can be met
◆ Alarm light, limit switch
Rail flat trolley can be applied on the assembly line include raw material paper bucket transfer, process transfer, finish paper roll store etc. It also is applied relative industry such as coil transportation, column object handling.

Model

KPJ-2t

KPJ-63t

KPJ-100t

KPJ-150t

Rated load(t)

2

63

100

150

Table size(mm)

Length

2000

5600

6500

10000

Width

1500

2500

2800

3000

Height

500

800

1000

1200

Wheel Quantity

4

4

4

8

Running speed(min)

25

20

20

18

Running distance(m)

25

50

50

50

Reference Weight(t)

2.5

10.5

14.1

26.2

◆ Load capacity, table size, rail gauge, speed can custom per client’s demand.
◆ Control way: push button pendant, remote control, operator platform mounted on cars
◆ Provide the optimized solution according to actual application condition.
