Aluminum production line cargo handling railway trolley

Aluminum production line cargo handling railway trolley

  • Tel.: +86-373-3020456
  • Mobile:+86-13849364134
  • Fax: +86-373-3020456
  • E-mail:Alex@perfte.com
Leave Messages
The transfer cart is feed AC 380V/415V/440V by cable. Through the electrical control system, the cart starts, stops, forward and backward, etc.

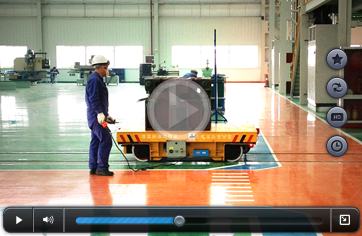

>> Product presentation


transfer trolley manufacturers
motorized transfer trolley
material transfer trolley


>> Features:

◆ Electric powered
◆ Rail guided
◆ With hydraulic lifting system
◆ Capacity range: up to 300MT
◆ Unlimited working time
◆ Wireless remote control




>> Characters


All transfer carts are equipped with state-of-the-art safety equipment, such as warning light, horns, bumpers, dead man controls and E-stop buttons.
Heavy load Transfer bogies are mainly used to solve maneuverability problems in tight spaces. You can achieve tight turn radius. The propulsion can be either electric (for in-plant load transports) or diesel (for long distances).
This type of transfer vehicles can be equipped with hydraulic lifting system for palletized cargoes in order to optimize space as much as possible.

Model

KPJ-2t

KPJ-16t

KPJ-40t

KPJ-100t

KPJ-150t

Rated load(t)

2

16

40

100

150

Wheel base(mm)

1200

2800

3800

4900

7000

Rail Inner Gauge (mm)

1200

1435

1435

2000

2000

Wheel Diameter(mm)

Ф270

Ф350

Ф500

Ф600

Ф600

Wheel Quantity

4

4

4

4

8

Ground Clearance (mm)

50

50

50

75

75

Motor Power(Kw)

0.8

2.2

5.5

11

15

Running distance(m)

25

25

50

50

50

Max Wheel Load(KN)

14.4

64.5

142.8

343.8

265.2

Recommended Rail Model

P15

P24

P43

QU100

QU100

◆ cable reel: spring/magnetic/motorized cable reel
◆ safety equipment: automatic stop when detecting persons/obstales, limit switch, etc
◆ operation way: wireless remote control, push button, control panel
◆ Electrical parts: Import or local brands

Get Price And Support

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours
