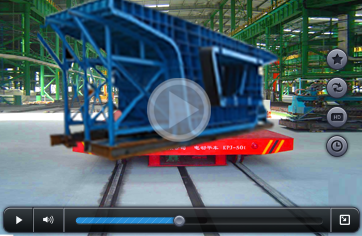

Billet handling trailer on track for casting plant

Billet handling trailer on track for casting plant

  • Tel.: +86-373-3020456
  • Mobile:+86-13849364134
  • Fax: +86-373-3020456
  • E-mail:Alex@perfte.com
Leave Messages
The billet handling trailer is powered from two railways. The AC power is stepped down low voltage and connects separately with rails. The cart driving mechanism gets the power by wheels from railway. The cart starts, stops, goes forward and backward by wheels movement.

>> Product presentation





>> Features:

◆ Frequently work without limit of time;
◆ Refractory brick to insulate high temperature
◆ Faster than 20m/min is available
◆ Low voltage




>> Characters


◆ Shuttle on railways
◆ Heavy load
◆ With railings
◆ Insulated railways
Billet handling trailer is applied to transfer finish billet from production line to storage in casting plant. There are some refractory brick and railings on the trailer for billet transportation. It also be used for transporting steel profile or machine parts in plant.

Model

KPDZ-2t

KPDZ-10t

KPDZ-25t

KPDZ-40t

KPDZ-63t

Wheel base(mm)

1200

2600

3200

3800

4300

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

Wheel Diameter(mm)

Ф270

Ф300

Ф400

Ф500

Ф600

Ground Clearance (mm)

50

50

50

50

75

Motor Power(Kw)

1

1.6

3

4

6.3

Transformer Power(KVA)

3

5

6.8

10

20

Transformer Quantity

1

1

1

1

1

Max Wheel Load(KN)

14.4

42.6

94.5

142.8

221.4

Recommended Rail Model

P15

P18

P38

P43

P50

Running distance(m)

80

80

80

60

50

◆ Load capacity, table size and rail gauge can be customized.
◆ Options: a.Remote radio control(imported or made in China); b.Automatic stop when detecting obstacle or person, limit switches(to limit travel); c.Automatic cutting off power on rail; d.Motor (DC motor with brush and DC motor brushless; e.Electrical parts(imported or made in China); f.Can be designed to meet special working environment such as high temperature.
