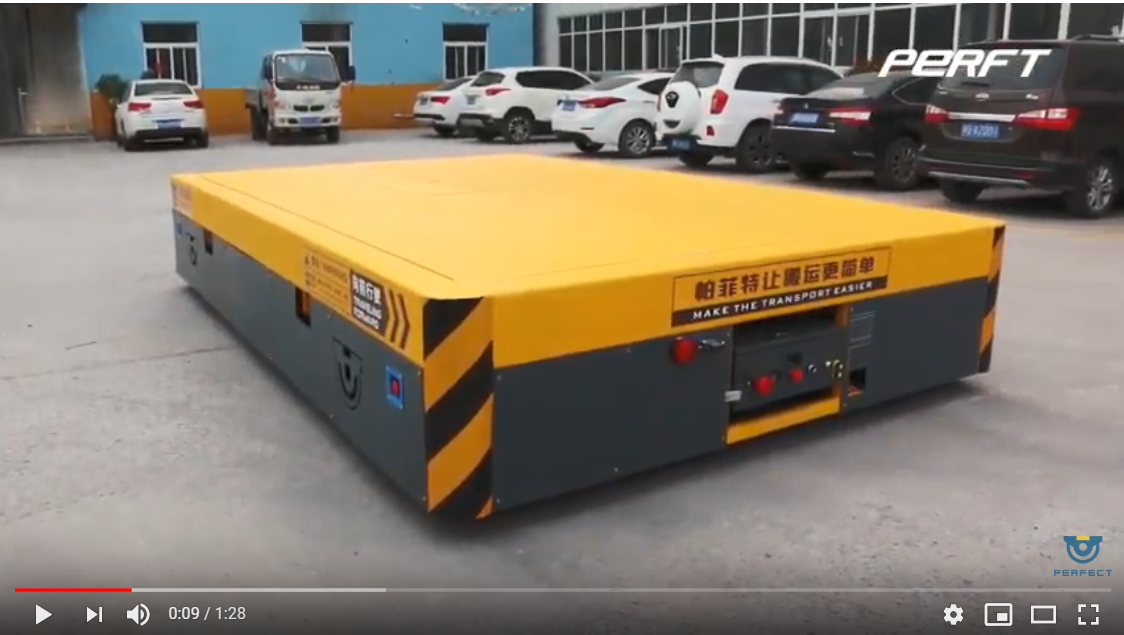

Trackless Motorized Steerable Transfer Trolley/self-propelling transfer trolley/self propelling transfer trolley
- Tel.: +8615736919601
- Mobile:+86 15736919601
- Fax: +86-373-3020456
- E-mail:info@perfte.com
Trackless transfer car usually powered by Battery, which is an Environment-friendly product;
The freedom of the route, the unlimited travel distance, and the saving of track laying costs;
Stable, Flexible, Efficient: turn left, turn right, and rotate 360°in place;
Safe and convenient operation is available, wired connection and wireless control, you can also assemble a PLC system for fully automated operation;
Intelligent Charging system One charging for all day long;
Its application range includes: mold field, automotive field, steel, heavy industry, light industry, chemical industry, mining, shipbuilding, engineering, aerospace, coal, nuclear energy, water conservancy engineering, etc. In order to meet the needs of industrial transportation, we have designed a variety of trackless transfer vehicles according to customer needs, making transportation more convenient, helping customers save costs, improve efficiency, and have been well evaluated by customers around the world.
| Model | 2t | 20t | 50t | 100t | |
| Rated Load | 2 | 20 | 50 | 100 | |
| Table Size | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Height(H) | 500 | 600 | 700 | 1000 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauger(mm) | 1200 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 147 | 343.8 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
