Introduction of scissor hydraulic lifting rail transfer cart Security operating procedure
2018-05-04

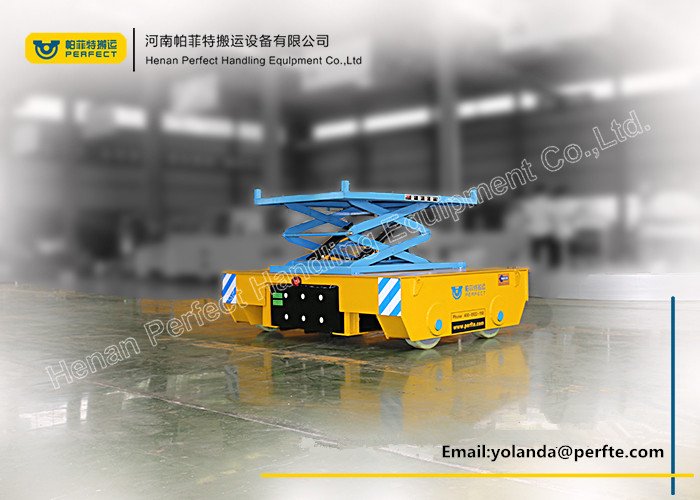

Introduction of scissor hydraulic lifting rail transfer cart Security operating procedure
The scissor hydraulic lifting rail transfer cart, produced by Henan Perfect handling equipment Co., Ltd., must be operated in accordance with the correct operation rules in order to avoid human malfunction. The safe operating procedures are introduced as follows:
1. In the loading of coil, the coil should be placed in the middle of the V-frame, the use of bias or overload is strictly prohibited.
2. When placing the coil, it should be smooth, no fast, bumping, etc., which has a strong impact on the hydraulic material handling equipment.
3. Matching use with unwinding machine: the V frame must be in the lowest position when packing the coils, that is, the bottom surface of the V frame must be in direct contact with the hydraulic steel coil hydraulic lifting transfer car table. After the coil is placed in place and steady, the Hydraulic Tilter will run to the position of the unwinding machine, then start the oil cylinder, lift the coil into place, slowly run the flat car. push the coil into place, after the coil is positioned, the V-shaped frame will be lowered to the lowest position. Exit hydraulic tra Nsfer cart, so circular operation is used.
4. The matching use with the winder: when the winder needs to unload, the V-shaped frame must be in the lowest position, that is, the bottom of the V-shaped frame must be in direct contact with the scissor hydraulic lifting rail transfer car table. Run the hydraulic dumping pipe industry steel coil transfer cart under the coil (align the middle position of the V-frame, start the oil cylinder, lift the V-frame into contact with the coil in place, unload, and then drop the V-shaped rack to Lowest position, exit hydraulic transfer cart (hydraulic vehicle transfer), so cycle operation is used.
5. Hydraulic material handling equipment is strictly forbidden to stand on either side of the hydraulic flat car in order to prevent accidents.
6. During operation, do not drag the handle control line to prevent aviation plug damage. During operation, no contact shall be made at the end of the track to block the iron.
7. The scissor hydraulic lifting rail transfer cart is strictly forbidden to change the direction of travel or reverse braking during operation.
8. It is forbidden to use hydraulic transfer cart to lift, crash, drag or pull other vehicles or objects on the track.
9. If scissor hydraulic lifting rail transfer car is overhauled, maintained, stopped, or suddenly cut off in work, hydraulic dumping pipe industry steel coil transfer cart and transformer power supply must be shut off in time.
10. Maintain, lubricate, repair and clean scissor hydraulic lifting rail transfer car.
